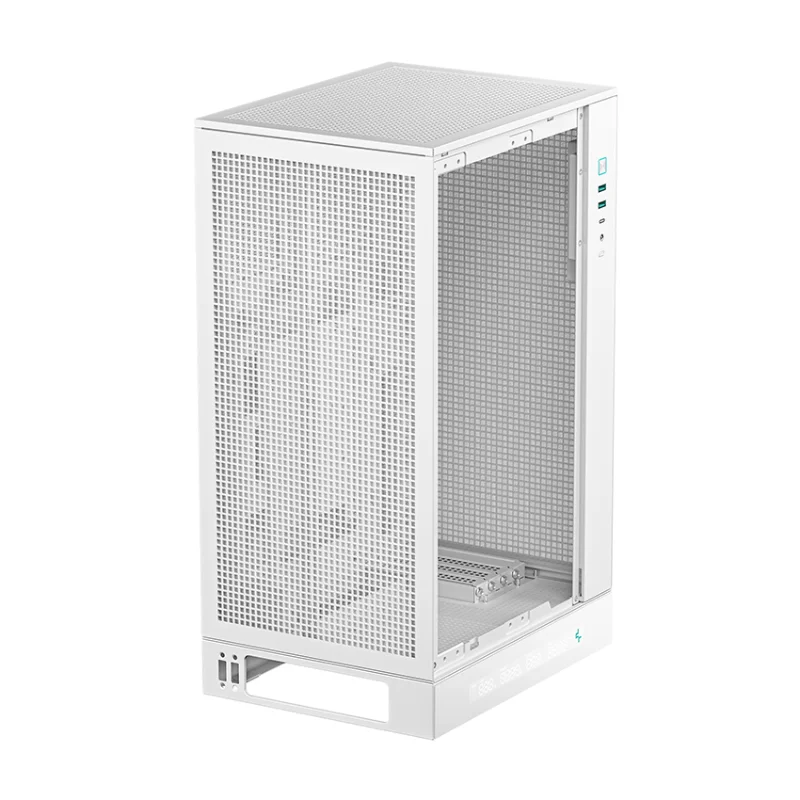

DEEPCOOL CH270 DIGITAL High-Airflow Micro-ATX Case – White
The DEEPCOOL CH270 DIGITAL White is a vertical mini-tower case featuring a compact footprint, tempered-glass side panel and integrated digital monitoring display. It supports Micro-ATX and Mini-ITX motherboards, GPUs up to 413mm, CPU coolers up to 174mm, rear-connector motherboards, and side-mounted 360mm liquid coolers.
Product Overview
The DEEPCOOL CH270 DIGITAL White is a compact vertical mini-tower designed to save valuable desk space without significantly limiting hardware compatibility. Its clean white finish, tempered-glass side panel and perforated wraparound panels create a modern appearance while maintaining strong ventilation.

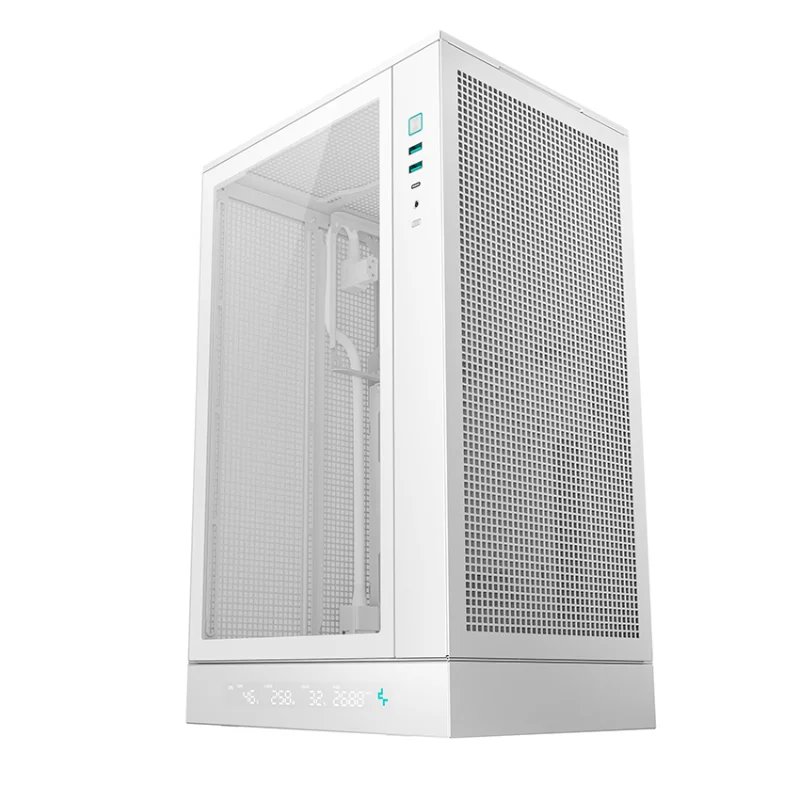

An integrated digital display bar is built into the base of the case, providing real-time system monitoring. Using the DeepCool software, the display can switch between CPU, GPU and PSU status modes, allowing important system information to remain visible during everyday use.

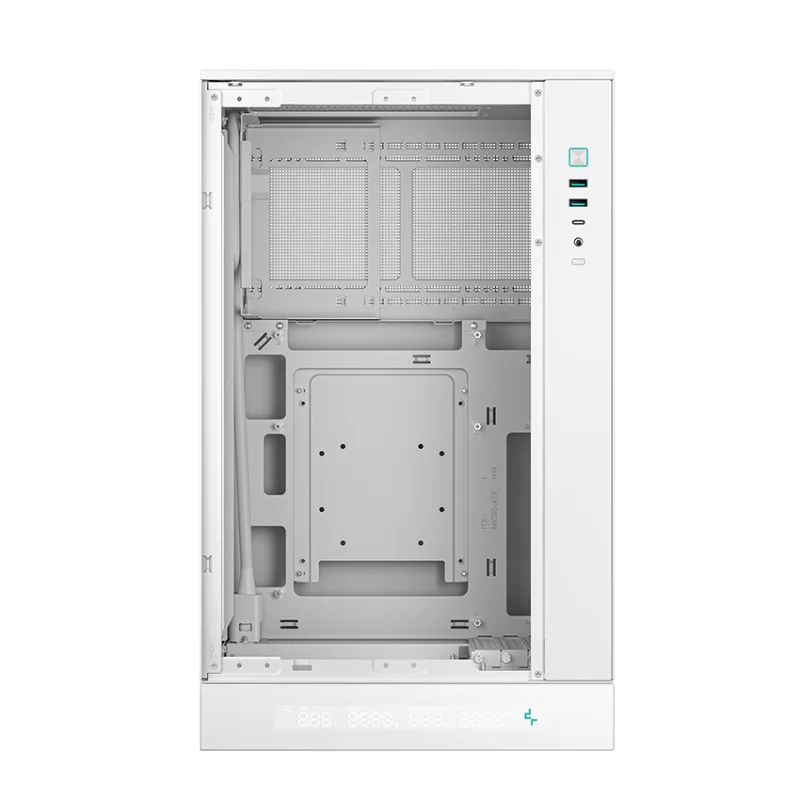

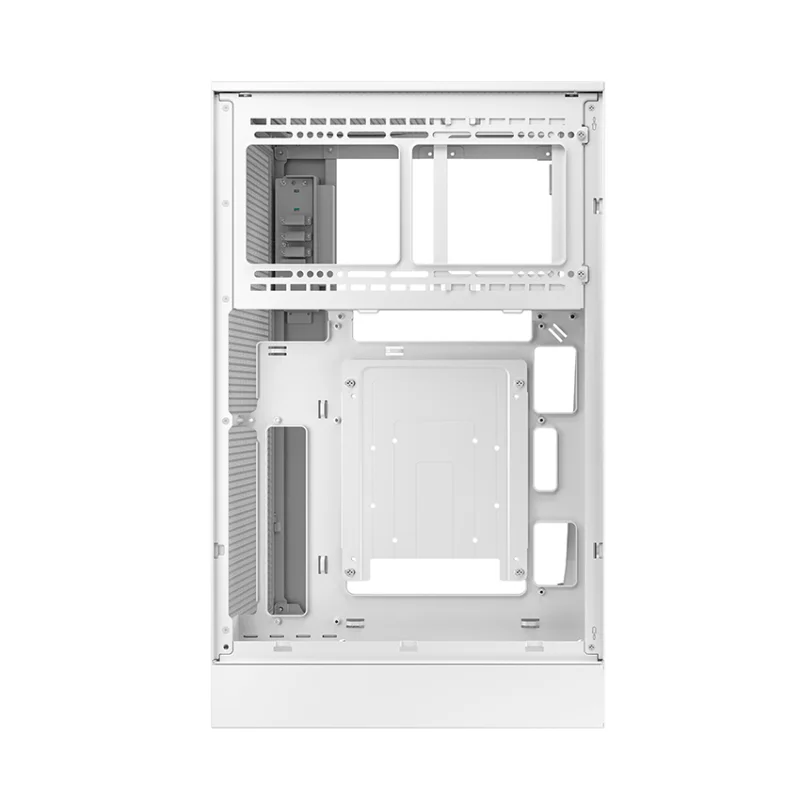

Despite its compact footprint, the CH270 DIGITAL supports Micro-ATX and Mini-ITX motherboards, including compatible rear-connector Micro-ATX models. It accommodates graphics cards up to 388mm with top fans installed, or up to 413mm when the top fan positions are left unused. CPU air coolers up to 174mm and ATX power supplies up to 150mm are supported.
The wraparound mesh design supports up to six 120mm cooling fans. Builders can install two 120mm fans at the top, three 120mm or two 140mm fans at the side, and one 120mm fan at the bottom. A side-mounted liquid cooler up to 360mm is also supported. No cooling fans are included with the case.
Storage support includes one 3.5-inch HDD and one 2.5-inch-inch SSD. Modern connectivity is provided through two USB 3.0 Type-A ports, one USB Type-C Gen 2 port, and a combined Audio/Microphone connection.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- ⚪ White Edition
- 📊 Integrated Digital System-Monitoring Display
- 🖥️ CPU, GPU and PSU Status Modes
- 🏢 Space-Saving Vertical Mini-Tower Design

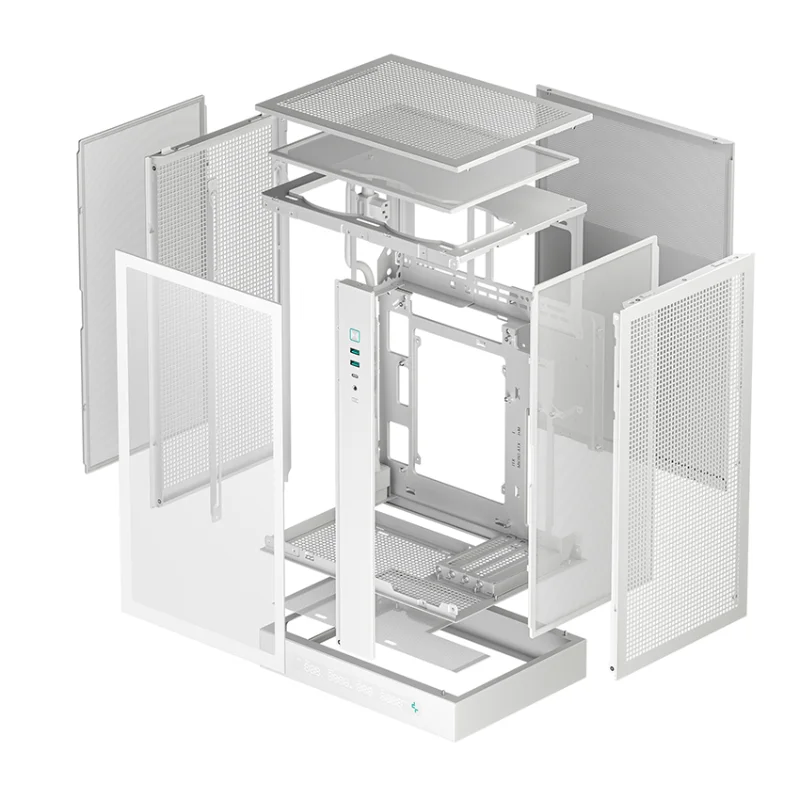

- 🌬️ High-Airflow Wraparound Mesh Panels
- 🪟 Tempered-Glass Side Panel
- 🔲 Micro-ATX / Mini-ITX
- 🔌 Supports Compatible Rear-Connector Micro-ATX Motherboards
- 🎮 Up to 413mm GPU Clearance
- ❄️ Up to 174mm CPU Cooler Clearance
- 💧 360mm Side Radiator Support
- 🌀 Supports Up to 6 × 120mm Fans
- 🔧 4 Expansion Slots
- 🧹 Four Removable Dust Filters
- ⚡ USB Type-C Gen 2 + Dual USB 3.0
- 🚫 Cooling Fans Not Included
Technical Specifications
| Category | Cases |
| Manufacturer | DEEPCOOL |
| Model | CH270 White |
| Case Type | Compact / Micro-ATX Case |
| Motherboard Support | Micro-ATX / Mini-ITX / Rear-Connector Micro-ATX |
| GPU Clearance | Please Check Official Specifications |
| Radiator Support | Please Check Official Specifications |
| Included Fans | None |
| Front I/O | 2 × USB 3.0 Type-A, 1 × USB Type-C Gen 2, 1 × Audio/Microphone |
| PSU | Not Included / Please Check Official Specifications |
| Color | White |
| Warranty | 1 Year Manufacturer Warranty |
