Product Details

The DEEPCOOL PN1200M is engineered to supply stable and efficient power to high-performance gaming computers and professional workstations. Its substantial 1200W output provides the capacity required for flagship processors, power-intensive graphics cards, extensive cooling equipment, and multiple storage devices.

Built according to the latest Intel ATX 3.1 and PCIe 5.1 standards, the PN1200M is designed to manage sudden power spikes from modern hardware. It can deliver up to twice its rated system power for 0.1 milliseconds, helping maintain stability during short transient loads. DeepCool

The included native 12V-2x6 cable uses 16AWG copper conductors, heat-resistant construction rated for 105°C, and supports delivery of up to 600W to compatible graphics cards. Three conventional PCIe 6+2-pin connections are also provided for GPUs and expansion hardware using traditional power connectors.

The PN1200M carries both 80 PLUS Gold and Cybenetics Gold efficiency ratings, reaching at least 90% efficiency under a typical 50% load. Its internal design combines active PFC, half-bridge SRC LLC, DC-to-DC conversion, and a Japanese main electrolytic capacitor to deliver stable electrical performance. DeepCool

A dynamic 135mm fluid-dynamic-bearing fan automatically adjusts its speed according to cooling requirements. Despite its high output, the enclosure measures only 150 × 150 × 86mm, simplifying installation and cable management in compatible ATX cases. Comprehensive electrical safeguards include OPP, OVP, SCP, OTP, OCP, UVP, SIP, and no-load protection.

Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.

Key Features

• ⚡ 1200W Power Output
• 🥇 80 PLUS Gold Efficiency
• 🏅 Cybenetics Gold Rated

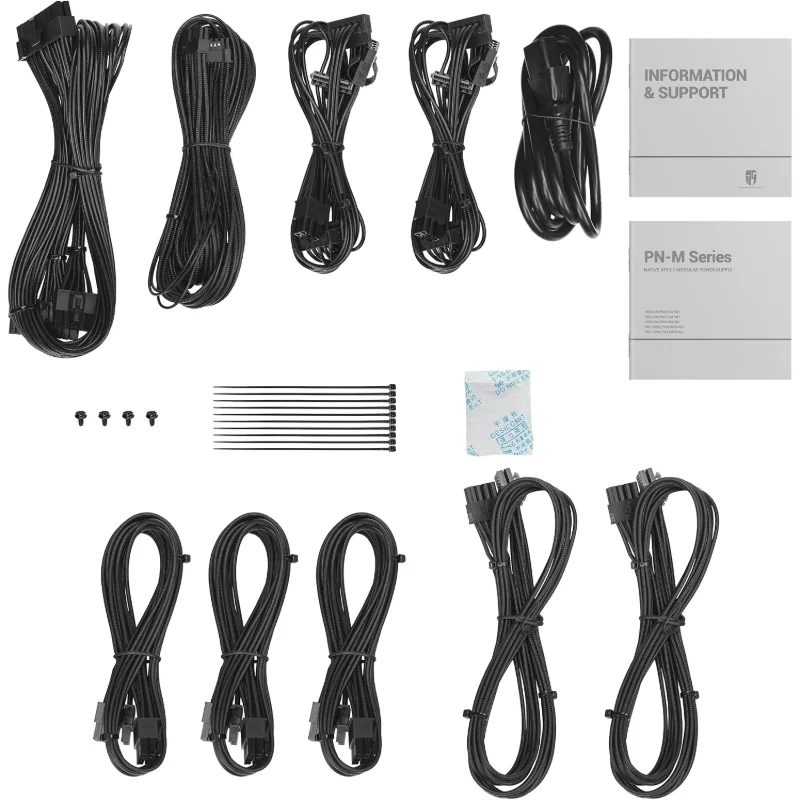

• 🔌 Fully Modular Cable Design
• ✅ Native Intel ATX 3.1 Support
• 🎮 PCIe 5.1 Compatible
• 🔋 600W-Capable 12V-2x6 GPU Cable
• 🧵 Heat-Resistant 16AWG Copper GPU Cable
• 🎮 3 × PCIe 6+2-Pin Connections
• 🧠 2 × CPU 4+4-Pin Connections
• 🌀 135mm Fluid-Dynamic-Bearing Fan
• 🔧 Active PFC, Half-Bridge SRC LLC and DC-to-DC
• 🌡️ Japanese Main Electrolytic Capacitor
• 📦 Compact 150mm-Long Enclosure
• 🧵 Premium Sleeved Modular Cables
• 🛡️ Comprehensive Electrical Protection
• ⚫ Black Finish
